Ubiquiti Dream Machine Beast Review: The 25 Gbps Gateway That Wants Your Whole Stack
# Ubiquiti Dream Machine Beast Review: The 25 Gbps Gateway That Wants Your Whole Stack
Ubiquiti has been circling the same idea for years: one box that terminates your internet, runs your firewall, manages the whole UniFi site, and records the cameras — so you stop stacking CloudKeys, NVRs, and gateways in a rack that was never big enough. The Dream Machine Beast is the most honest attempt yet at that “everything appliance.” It is a 1U rack-mount cloud gateway with 25 Gbps IPS throughput, 7,500+ client capacity, and the full UniFi application suite — Network, Protect, Access, Talk, and Connect — running on board. At $1,499 list, it is priced like the flagship it is. Here is what matters when you are the one racking it.
The Specs That Actually Matter
Everything below is from Ubiquiti’s official UDM-Beast product page. No guesses, no forum math.
Ports and switching capacity:
| Item | Spec |
|---|---|
| Default WAN | (1) 25G SFP28 + (1) 10 GbE RJ45 |
| Max WAN ports | 8 |

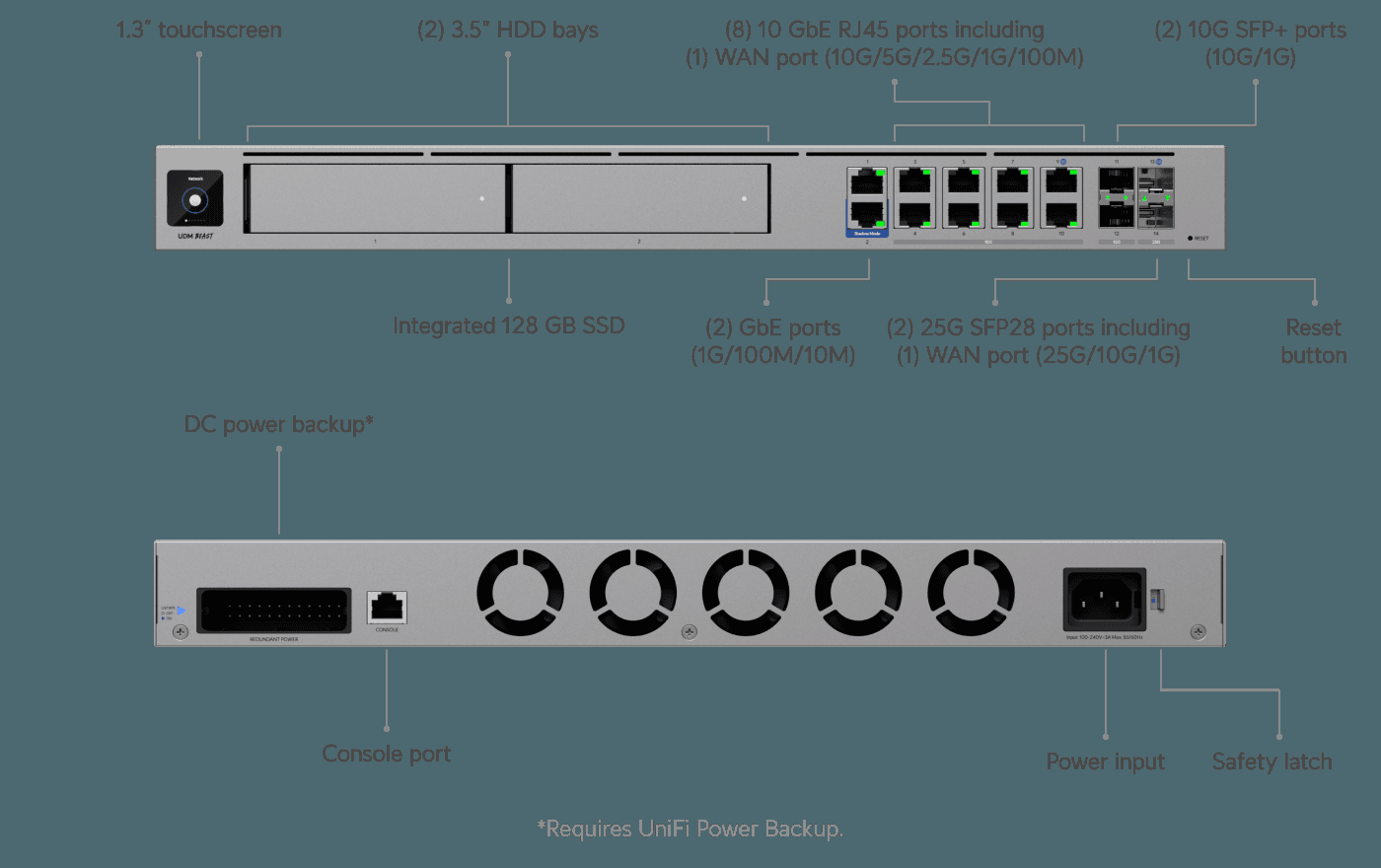

| RJ45 | (2) 1 GbE + (8) 10 GbE (multi-rate: 10G/5G/2.5G/1G/100M) |
| SFP+ | (2) ports (10G/1G) |
| SFP28 | (2) ports (25G/10G/1G) |
| IDS/IPS throughput | 25 Gbps |
| MAC address table | 32,000 |
Compute and storage:
| Item | Spec |
|---|---|
| Processor | Octa-core ARM v9 @ 2.1 GHz |
| System memory | 16 GB |
| On-board storage | Integrated 128 GB SSD |
| NVR bays | (2) 3.5″ SATA bays (add drives separately) |
| Managed UniFi devices | 750+ |
| Managed cameras | 100 HD / 60 2K / 40 4K |
| Managed access hubs | 200 |
| Simultaneous clients | 7,500+ |
Platform, power, physical:
| Item | Spec |
|---|---|
| Form factor | 1U rack mount, 442.4 x 43.7 x 325 mm, 5.5 kg |
| Applications | UniFi Network, Protect, Access, Talk, Connect |
| Redundancy | Shadow Mode (VRRP) gateway failover + USP-RPS DC power backup input |
| Firewall | Stateful, application-aware L7, DPI, zone-based filtering (regions, domains, apps), content filtering, IPS/IDS with 55,000+ signatures with CyberSecure |
| VPN | License-free SD-WAN, site-to-site IPsec, OpenVPN, WireGuard, L2TP, Teleport zero-config VPN, Identity Endpoint one-click VPN |
| Routing | OSPF, BGP, LACP, advanced QoS, IGMP proxy, full NAT suite (SNAT/DNAT/masquerade/NAT pool/1:1) |
| Power | Internal 150W AC PSU (100–240V), max consumption 100W, plus USP-RPS DC input (11.5V DC) |
| Other | 1.3″ touchscreen, Bluetooth console, RadSec, integrated RADIUS server |
What It Gets Right
The throughput is real, not marketing-asterisk throughput. Ubiquiti quotes 25 Gbps IPS/IDS throughput on this box, and the port layout backs it up: two native 25G SFP28 ports, two SFP+, two 1GbE, and eight multi-rate 10GBASE-T ports. If you are feeding the gateway from a 10G or 25G handoff, the Beast is the first Dream Machine where enabling intrusion prevention doesn’t quietly halve your speeds. For installers quoting symmetrical 1 Gbps fiber today with an upgrade path, that headroom is the entire product argument.

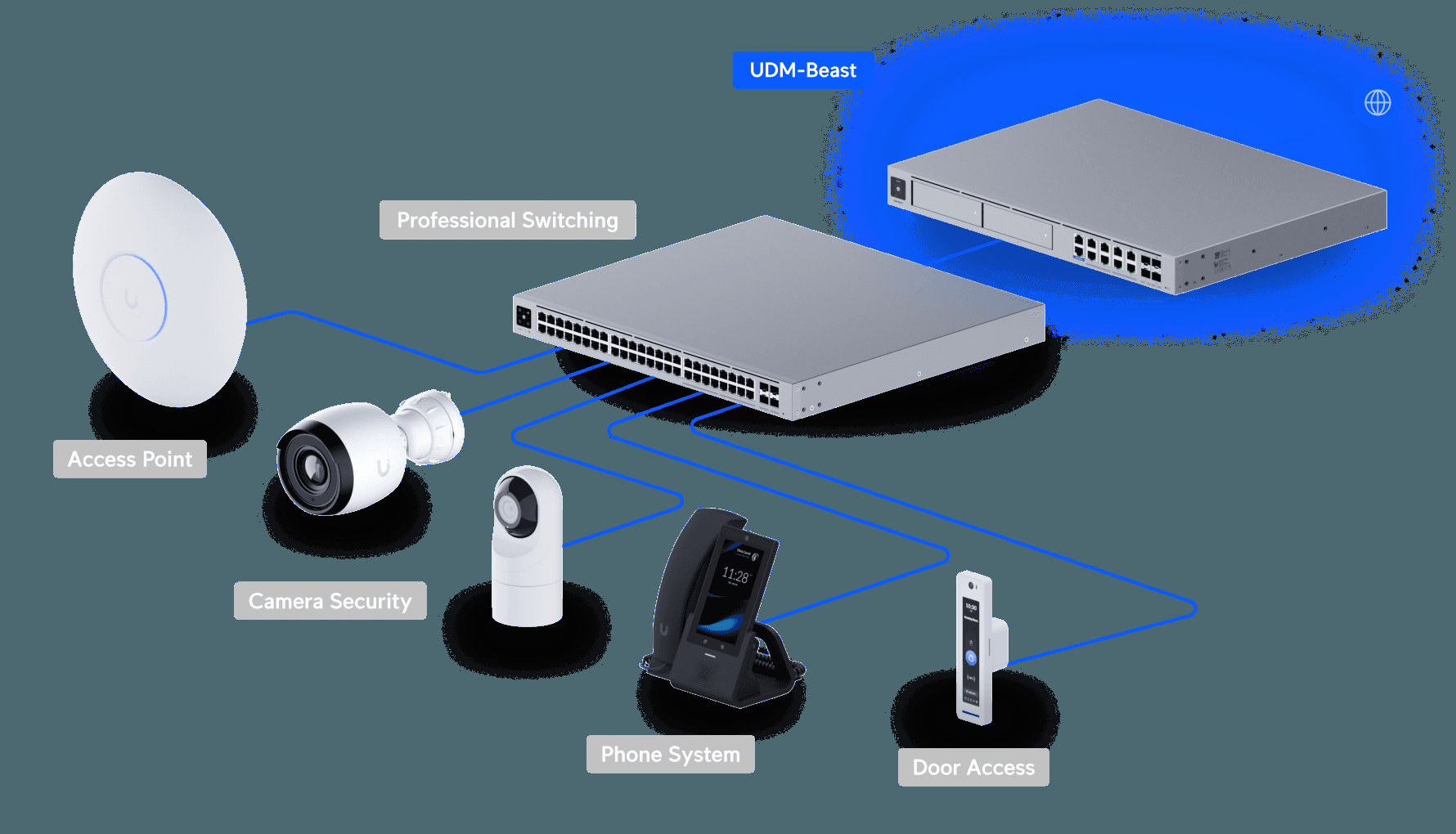

One box replaces three. Network application, Protect NVR (two hot 3.5″ bays plus the 128 GB system SSD), Access, Talk, and Connect all run natively. On a 750-device site that historically meant a Cloud Key (or a self-hosted server) plus a UNVR plus a firewall, the Beast collapses the whole stack to 1U and one power drop. That is real panel space, real UPS capacity, and one less thing to firmware-manage.
Redundancy features that belong on a flagship. Shadow Mode (VRRP) failover means you can buy a second Beast as a warm spare without re-architecting. The USP-RPS DC power input lets you lean on Ubiquiti’s redundant power system. And OSPF plus BGP on the routing side mean it can honestly sit at the edge of a multi-site routed network rather than pretending it’s a router while you run OSPF on the switch below it.
Rack-mount with real physical security. 1U, aluminum CNC and steel enclosure, ESD/EMP protection rated air ±8 kV / contact ±4 kV. This is rack gear built to live in a comms closet, not a gateway with rack ears bolted on as an afterthought.
The Cons — Say Them Out Loud
- Price of admission. $1,499 list before drives, and Ubiquiti’s own Basic-capacity 4 TB HDDs start at $120 each on the same product page. With CyberSecure subscription ($99/unit/year billed annually if you want the 55,000+ signature set), a loaded Beast is a $1,800+ line item. The job it replaces — gateway plus Cloud Key Plus plus UNVR — can be cheaper if you don’t need 25 Gbps.
- Only four physical SFP cages total. For a gateway this big, two SFP28 + two SFP+ is tighter than enterprise gear at the same money. If your design needs three fiber uplinks plus a WAN, you are already out of cages.
- Single internal PSU. 150W internal, and no second supply — Ubiquiti’s answer is the external USP-RPS. Fine, but on a 1U platform this size, dual hot-swap supplies would have been the honest choice for true high availability.
- All eggs, one basket. Running Protect, Access, and the Network application on the edge gateway means one reboot takes your camera recording and door controllers with it. Some integrators are fine with that; many won’t be. Decide before you rack it, not after handover.
- Two drive bays, max. A four-bay UNVR exists for a reason. If the site is camera-heavy, the bays here are for small installs only.
Where This Thing Actually Fits
Multi-site MSP shops. The license-free SD-WAN, Identity Endpoint one-click VPN, integrated RADIUS with RadSec, and zone-based filtering are the features an MSP charges monthly for. The Beast does them without a per-site license line. Pair it with a UDM-Pro or UDM-SE at the smaller branches via Shadow Mode where you need failover at each site.
Single-building commercial installs, 50–150 users. 7,500+ clients sounds absurd for an office of 80 — until you count cameras, door readers, access points on three floors, and IoT VLANs. The capacity class means the gateway never becomes the bottleneck when the site grows, and N+0 is acceptable when a warm spare is overkill.
Fiber-fed buildings. If the WAN handoff is 10G or 25G SFP28/SFP+, this is the Dream Machine your uplink deserves. Put the ISP handoff on the 25G SFP28 WAN, aggregate the core switch on the second cage with DAC, and you get a campus edge with no bottleneck in the chassis.
Install notes from the field: budget the depth (325 mm deep plus cable bend radius — that’s a shallow rack trap), bring SFP28-capable DACs or modules (the 25G DA cables are a separate SKU on Ubiquiti’s accessory side), and label the two drive bays before you populate them so the next tech knows which vault drive is which. Enable Shadow Mode with a spare Beast on the same UniFi account before you hand over, not after the first outage.
Bottom Line
The Dream Machine Beast is Ubiquiti admitting what its platform had become: a firewall, an NVR, an access controller, and a phone system that all wanted one properly-sized chassis. If your design is UniFi end-to-end, your handoff is 10G or better, and you can live with a single PSU and two drive bays, it consolidates four boxes into one 1U slot at a fair price and finally delivers throughput that matches the ports. If you need four SFP cages, hot-swap power, or a camera fleet bigger than 40 4K streams, buy the pieces separately and keep the Beast on the shortlist for the next building.
For quote help sizing a UniFi stack for your site, get in touch through the contact page.
All specifications from Ubiquiti’s official UDM-Beast product page (store.ui.com); product imagery courtesy of Ubiquiti.
